Creating a plastic housing that is strong, reliable, and easy to manufacture is not just about looks. It’s about smart engineering. In today’s world, more industries rely on Housing Injection Molding to produce housings for electronics, appliances, medical devices, and more. However, success begins with the right design and process choices.
A skilled Mold Maker will help you get the most out of your injection molding project. But good results also depend on thoughtful engineering. In this article, we’ll walk through practical design tips and techniques to improve your injection molded housings from the ground up.
Know the Purpose of Your Housing
Before any design starts, understand what the housing must do. Is it protecting electronics? Holding moving parts? Withstanding water or chemicals?
Each function affects your choices in Housing Injection Molding. A waterproof housing, for example, needs seals and tight joints. A medical housing may need a clean, smooth surface. A good Mold Maker can guide you in selecting the right plastic and design approach based on your part’s purpose.
Use Consistent Wall Thickness
One of the most important rules in Housing Injection Molding is to maintain uniform wall thickness. Uneven thickness leads to warping, sink marks, and stress inside the part. These problems reduce part strength and appearance.
Try to keep wall thickness between 1.5 mm and 3 mm. If some areas need extra support, use ribs instead of thicker walls. A good Mold Maker will spot areas where thickness needs adjustment for better flow and cooling.
Add Draft Angles to All Vertical Surfaces
Draft is the slight angle added to walls that helps the part release from the mold. Without draft, parts can stick or get damaged.
Most vertical walls need a draft of 1 to 2 degrees. Larger parts or textured surfaces may need more. Ask your Mold Maker for help in reviewing your model to make sure all vertical walls have enough draft for smooth ejection.
Use Ribs for Strength, Not Mass
If your part needs strength, adding more plastic isn’t always the answer. In Housing Injection Molding, ribs can add strength without adding mass.
Ribs are thin walls added inside the housing to support flat areas. Ribs should be no thicker than 60% of the main wall to avoid sink marks. Place them at right angles to surfaces to prevent bending. Your Mold Maker will help with proper rib design and placement.
Design Strong and Moldable Bosses
Bosses are the parts of your housing that hold screws or allow connections. They must be strong, but they must also follow molding rules.
Make sure bosses are not too thick, as this can cause defects like sink marks. Support them with gussets or ribs, and keep wall thickness balanced. A reliable Mold Maker can guide boss design to improve strength and molding performance.
Avoid Sharp Corners
Sharp corners are a problem in Housing Injection Molding. They create stress points and are hard for plastic to fill completely. Rounded corners help the molten plastic flow smoothly and reduce the chance of cracking.
Fillets also help reduce internal stress after cooling. A good Mold Maker will encourage smooth transitions, especially in thick-to-thin sections or between ribs and walls.
Plan for Undercuts Carefully
Undercuts are areas that prevent a part from being ejected in a straight line from the mold. These features increase tool cost and complexity. If possible, avoid them.
If your housing requires undercuts for clips or assembly features, your Mold Maker will suggest using side actions, lifters, or collapsing cores. They’ll help design the tool to handle these challenges without damaging the part.
Account for Assembly and Alignment

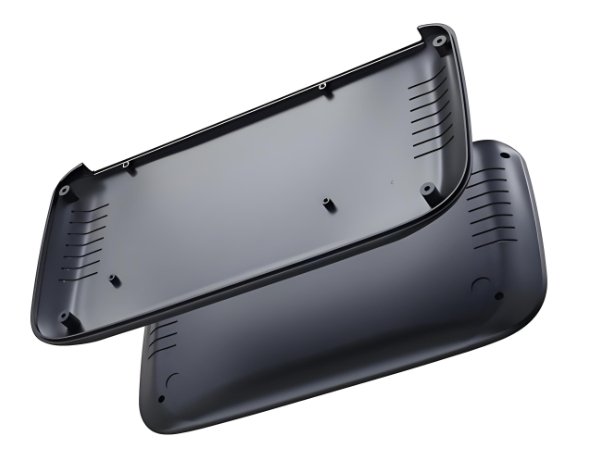

Most housings are made in two halves—a top and a bottom. These must fit together perfectly. Use alignment pins, tabs, and snap-fit features to join parts without force or gaps.
In Housing Injection Molding, tight tolerances are possible, but you must plan for them. Work with your Mold Maker early to make sure your alignment features work with the tool design and expected shrinkage.
Select the Right Material
Material choice affects how your housing performs. Different plastics offer different strengths, heat resistance, chemical resistance, and flexibility.
Common choices include:
- ABS: good strength, impact resistance, and looks
- Polycarbonate: high strength and clarity
- Nylon: strong and heat-resistant
- Polypropylene: flexible and chemical-resistant
Your Mold Maker will also suggest materials based on molding temperature, flow behavior, and cost.
Design for Efficient Molding and Ejection
Every second counts in Housing Injection Molding. Fast molding means lower costs and higher output. To achieve this, you need good part design.
Avoid large thick sections—they take longer to cool. Use even cooling channels in the mold to reduce warping. Add ejector pin pads where needed. Make sure the part won’t stick during ejection. The Mold Maker will design the tool for best results, but it all starts with your part design.
Surface Finishing and Appearance
If the housing will be seen, then appearance matters. Textures, gloss, and color must be consistent. This means careful mold surface prep and steady plastic flow.
Talk to your Mold Maker about surface finishes. Polishing, textures, or even laser etching can improve the look and feel of your part. But design must support this. Avoid deep recesses or thin edges that won’t fill properly or show defects.
Optimize Gate and Flow Design
Plastic enters the mold through a gate. The gate location affects how the plastic flows, fills, and cools. Poor gate location can lead to weld lines, air traps, or sink marks.
Your Mold Maker uses mold flow analysis software to test different gate locations and flow paths. As a designer, avoid blocking flow with long thin walls or tricky shapes. Simple flow means better parts and longer mold life.
Work Closely with a Professional Mold Maker
No housing design is complete without feedback from a professional Mold Maker. They don’t just cut steel. They help shape your design to be easy to mold, strong in use, and low in cost.
A good Mold Maker will:
- Review your design and suggest improvements
- Help with material selection
- Provide DFM (Design for Manufacturability) feedback
- Design and build precise tools
- Support mold trials and early production
They are a partner in your success.
Great plastic housings don’t happen by accident. They are engineered. Every decision—from wall thickness to gate location—affects how well the part molds, performs, and looks.
By following the tips in this article and working closely with an experienced Mold Maker, you can improve every part you design. Housing Injection Molding is a powerful method for making strong, attractive, and cost-effective plastic housings. But success comes from teamwork between the designer and the Mold Maker.
Get it right, and your parts will mold smoothly, assemble easily, and serve customers for years to come.
