Designing plastic housings for injection molding is both a science and an art. A well-designed housing not only protects internal components but also enhances the product’s appearance and usability. However, good design doesn’t happen by accident. For Housing Injection Molding to be successful, the engineer must follow essential design rules, communicate with the Mold Maker, and consider the mold process from the beginning.
This article explores the major design considerations for housing mold projects, helping engineers and product developers improve performance, reduce costs, and avoid production issues.
Understand Function Before Form
Before designing the housing’s shape, it’s vital to know what the part must do. Will it protect electronics? Will it resist water or heat? Must it withstand impacts or vibrations?
Each function guides your material and structural choices. For example, if the housing must be waterproof, the design needs seals, ribs, and tight tolerances. For rugged use, the housing needs impact-resistant materials and thicker walls. Your Mold Maker can help evaluate these needs and suggest practical solutions for Housing Injection Molding.
Material Selection Matters
Different plastics offer different mechanical, thermal, and chemical properties. Choose materials that match the intended use of the housing.
- ABS is strong, tough, and easy to mold.
- Polycarbonate offers high impact resistance and clarity.
- Polypropylene is flexible and chemical resistant.
- Nylon is strong and wear-resistant.
Material choice affects wall thickness, shrinkage, and cooling time. Always consult your Mold Maker to make sure your selected plastic fits well with the Housing Injection Molding process.
Wall Thickness: Keep It Consistent
Uniform wall thickness ensures even cooling and avoids defects like sink marks or warping. Most Housing Injection Molding designs use walls between 1.5 mm to 3 mm.
If the part needs extra strength, avoid thicker walls. Instead, use ribs or gussets. Thick sections take longer to cool and can lead to internal stress. A skilled Mold Maker will review your design and adjust thicknesses where needed to improve part quality.
Add Draft Angles to Vertical Surfaces
Draft angles help the molded part release from the mold. Without draft, parts may stick, causing ejection problems or damage.
Most vertical walls should include at least 1-2 degrees of draft. Surfaces with texture may need more. Discuss draft angles with your Mold Maker early in the design process to avoid delays or tooling changes.

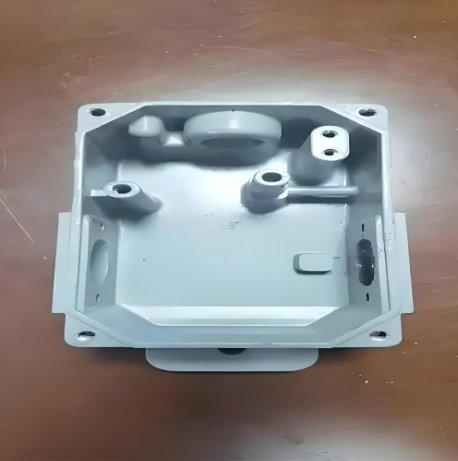

Use Ribs and Bosses Wisely
Ribs add strength without increasing wall thickness. Place them strategically inside the housing to prevent warping and improve stiffness.
Ribs should be no more than 60% of the wall thickness to avoid sink marks. Bosses, which are used for screw posts or inserts, must also follow these rules. Position them near corners and support them with gussets. Your Mold Maker can help fine-tune these features for better molding results.
Design for Assembly
Most housings consist of two or more parts that must fit together tightly. Snap fits, alignment pins, and screw bosses help achieve proper alignment and secure assembly.
Make sure these features are molded accurately by considering shrinkage and part tolerances. Your Mold Maker can suggest ideal positions and tolerances to ensure proper assembly in high-volume production.
Avoid Sharp Corners
Sharp inside corners create stress points and are harder for plastic to fill. Round them with fillets for better strength and flow.
Outside corners should also be rounded. Fillets help reduce cosmetic defects and make the housing more durable. In Housing Injection Molding, smooth transitions improve material flow and part strength. Your Mold Maker will always recommend avoiding sharp corners when possible.
Plan for Mold Flow and Gate Location
The gate is where molten plastic enters the mold. The gate’s location affects how plastic fills the cavity.
Poor gate placement can lead to weld lines, air traps, and uneven cooling. Always consult your Mold Maker for gate location based on mold flow analysis. Good design helps plastic flow smoothly, leading to stronger and better-looking housings.
Include Features for Ejection
After molding, the housing must eject from the mold. Ejector pins push the part out without causing damage.
Design flat areas or pads where ejector pins can safely push. Avoid deep ribs or unsupported areas near ejector locations. A knowledgeable Mold Maker will work with you to ensure smooth ejection with minimal marks on the part.
Consider Undercuts Carefully
Undercuts are features that prevent straight ejection. They add cost and complexity.
If undercuts are needed, side actions or lifters must be used in the mold. These increase tooling costs and cycle time. Eliminate undercuts where possible, or ask your Mold Maker to suggest ways to simplify them.
Think About Surface Finish
Some housings need a glossy surface, others a textured or matte finish. Choose a surface finish that fits the product’s look and function.
Keep in mind that textured surfaces may need more draft angle. Glossy parts show defects more easily. A trusted Mold Maker will prepare mold surfaces to match your finish needs and maintain them during production.
Tolerances and Shrinkage
Plastics shrink when they cool. This shrinkage must be considered in your dimensions.
Each material shrinks differently. Your Mold Maker uses experience and data to compensate for this. Always allow tolerance ranges, especially in snap-fit or assembly areas.
Work with Your Mold Maker Early
The best way to ensure success is to involve the Mold Maker during the design stage. Don’t wait until the part is finished.
A professional Mold Maker will:
- Review your CAD files
- Suggest improvements
- Perform mold flow analysis
- Help with material selection
- Offer DFM (Design for Manufacturability) advice
Working together avoids problems and improves part quality from the start.
Creating a great housing starts with great design. Every feature, from wall thickness to draft angles, affects how the part molds and performs.
By following these design principles and working closely with a trusted Mold Maker, you’ll reduce production costs, improve part quality, and achieve reliable results. Housing Injection Molding is a powerful method for making strong, attractive plastic housings—but only when design and tooling work together.
Start your next project with these tips in mind. Collaborate with your Mold Maker early, and you’ll build better housings every time.
