Boosting Quality and Efficiency in Electronic Injection Molding with the Help of a Skilled Mold Maker
In the world of plastic housing production, especially for electronic devices, every detail matters. The goal is simple: make strong, accurate, and good-looking parts. But reaching this goal takes more than just pressing a button on a molding machine. It starts before the mold is made. That’s where Mold Flow Analysis comes in. This powerful tool allows engineers and every experienced Mold Maker to understand what will happen during Electronic Injection Molding—before it even begins.
This article explains how Mold Flow Analysis plays a critical role in housing design and why it is essential for anyone working with Electronic Injection Molding and looking for a professional Mold Maker.
What is Mold Flow Analysis?
Mold Flow Analysis is a computer simulation. It shows how plastic flows inside the mold during injection. It helps predict how the material behaves during the molding process. With this tool, engineers and the Mold Maker can study pressure, temperature, flow paths, cooling, and shrinkage.
This analysis gives a virtual preview of the entire Electronic Injection Molding process. It tells you whether the part design and the mold design are good—or if they need changes.
Why It’s Important in Housing Design
Plastic housings for electronics must be precise. They must protect internal parts and allow easy assembly. They also need to meet strength, heat, and cosmetic standards. A single flaw in the molding process can cause warping, short shots, weld lines, or even cracks.
Mold Flow Analysis helps avoid all these problems. It allows the Mold Maker and designers to correct issues early, before steel is cut.
Let’s explore how this analysis supports each stage of Electronic Injection Molding.
1. Predicting Material Flow Behavior
When plastic flows through a mold, it doesn’t always go where you expect. Thin walls, sharp corners, and uneven thickness can slow it down or speed it up. This causes defects.
Mold Flow Analysis shows exactly how the material will flow. It helps the Mold Maker adjust gate positions, runner sizes, and wall thickness. In Electronic Injection Molding, this is especially helpful when housings have USB ports, ribs, or screw bosses.
By simulating the flow, designers prevent short shots and air traps. The result is a clean, fully filled housing every time.
2. Choosing the Right Gate Location
Gates are where plastic enters the mold cavity. Their position affects how the plastic spreads. A bad gate location leads to uneven fill, high stress, and cosmetic flaws.
Mold Flow Analysis shows the best gate location based on flow balance and pressure. A good Mold Maker uses this information to place gates where the flow is smooth and uniform.
In Electronic Injection Molding, gate placement also affects where weld lines form. The analysis helps move weld lines away from areas that require strength or a clean look.
3. Detecting Weld Lines and Weak Zones
Weld lines form when two flow fronts meet. In electronic housings, these weak areas may affect strength or appearance.
Mold Flow Analysis shows where weld lines are likely to appear. It also shows how strong they will be. The Mold Maker can then redesign the part or mold to move or reduce weld lines.
This step is crucial for ensuring quality in Electronic Injection Molding. Especially for housings that will hold moving parts or fasteners.
4. Controlling Warpage and Shrinkage
Every plastic shrinks when it cools. If cooling is uneven, parts can warp. This is a big problem for housings that must fit tightly with other parts.
Mold Flow Analysis predicts shrinkage and warpage patterns. It allows the Mold Maker to adjust cooling systems, wall thickness, and even part geometry. In high-precision Electronic Injection Molding, this helps ensure parts come out flat and accurate.
Good analysis reduces the need for trial-and-error later. This saves time and money.
5. Optimizing Cooling Channel Design
The cooling phase is the longest part of the injection molding cycle. Poor cooling causes long cycle times and part defects.
Mold Flow Analysis helps design efficient cooling systems. It simulates heat transfer and shows hot spots in the mold. The Mold Maker uses this to position cooling lines for uniform cooling.
For Electronic Injection Molding, faster cooling means higher productivity. It also means less stress in the housing and better dimensional stability.
6. Reducing Mold Rework and Costs
Making a mold is expensive. Making changes after the mold is built is even more costly.
By simulating the molding process in advance, Mold Flow Analysis helps eliminate problems before cutting steel. This reduces mold rework, scrap, and delays.
A skilled Mold Maker uses this tool to deliver a mold that performs right from the first trial. That’s why many companies insist on Mold Flow Analysis before any mold build begins—especially for complex Electronic Injection Molding projects.
7. Improving Communication Between Teams
Mold Flow Analysis creates visual results. Flow paths, pressure maps, and temperature zones are easy to understand. This makes it easier for designers, engineers, and Mold Makers to discuss and fix issues.
In Electronic Injection Molding, fast teamwork is key. Mold Flow Analysis helps teams move forward with confidence. Everyone sees the same data and agrees on the best path.
8. Supporting Sustainable Manufacturing
Wasting plastic and energy is costly and harmful to the environment. Mold Flow Analysis helps reduce both.
With better gate placement, cooling design, and cycle times, the process uses less material and energy. A great Mold Maker uses the analysis to build efficient molds that support long-term sustainability in Electronic Injection Molding.
Final Thoughts: Why Mold Flow Analysis Matters
In today’s fast-paced world of electronics manufacturing, you cannot afford guesswork. Mold Flow Analysis turns experience and data into precision. It helps predict problems and eliminate them before they happen.

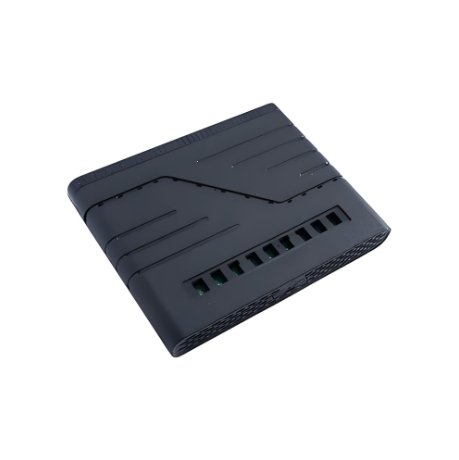

Whether you’re making housings for sensors, routers, or remote controls, this tool gives your team a major advantage. When paired with the skills of an expert Mold Maker, it becomes a game-changer in Electronic Injection Molding.
Every successful plastic housing starts with good design. But great design comes from insight—and that begins with Mold Flow Analysis.
