How Mold Maker Can Solve Deformation Issues in Injection Molding

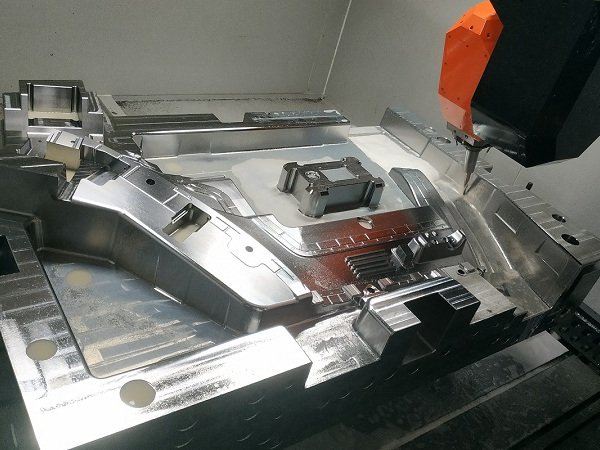

Mold Maker

Deformation in injection-molded products is a common problem that impacts quality and performance. When products deform, they no longer meet design specifications. Various factors cause this issue, but solutions exist. In this article, we will explore the causes and solutions for deformation in injection molding, focusing on how mold makers can address these problems.

1. Uneven Cooling in the Injection Mold

Uneven cooling is a leading cause of deformation in injection-molded products. If one part of the molded component cools faster than another, it leads to warping or shrinkage. The cooling system in the injection mold is responsible for managing this process. When cooling is inconsistent, it causes uneven stress, leading to deformed parts.

Solution:
To prevent uneven cooling, injection mold makers must ensure proper cooling system design. Cooling channels should be evenly distributed throughout the mold to keep temperatures stable. Advanced techniques, such as conformal cooling, help manage the cooling process more effectively. Slowing down the cooling rate can also allow the product to cool more uniformly, reducing deformation risks.

2. Poor Mold Design by the Mold Maker

Mold design is crucial in preventing deformation. If the injection mold design doesn’t consider shrinkage or flow patterns, products can easily deform. Thin walls or sharp corners within the mold can create stress points. These areas are more likely to warp or bend once the part is ejected.

Solution:
A well-designed injection mold should allow for uniform material flow and wall thickness. Adding fillets and rounded edges reduces stress concentration. A skilled mold maker will take into account factors such as shrinkage and material behavior. Using simulation software during the design stage can reveal potential issues. These improvements help prevent deformation in the final injection-molded product.

3. Inconsistent Material Flow During Injection Molding

Inconsistent material flow causes many defects in injection-molded parts, including deformation. When the resin doesn’t flow evenly, some parts of the mold might be overfilled while others are underfilled. This imbalance can cause warping as the part cools. High injection speeds or excessive pressure can exacerbate the issue.

Solution:
To fix inconsistent material flow, adjust the injection speed and pressure. Ensure the resin fills the mold cavity evenly. Mold makers can also use a balanced runner system to promote uniform material distribution. Venting systems help prevent air traps, which affect resin flow. Slower injection speeds allow the material to fill the mold more smoothly, reducing deformation risks.

4. Residual Stress in Injection Molded Products

Residual stress is internal tension that remains in the part after molding. This stress often leads to deformation over time. Several factors, including fast cooling, uneven packing pressure, and improper ejection methods, contribute to residual stress. If left unaddressed, this stress weakens the part and affects its long-term shape.

Solution:
To minimize residual stress, mold makers should regulate cooling rates and apply even packing pressure. Slower cooling allows internal stress to release gradually. The ejection process should be smooth and uniform to prevent introducing more stress. Post-molding annealing can further relieve residual stress by heating the part to an optimal temperature.

5. Material Shrinkage in Injection Molding

All resins shrink as they cool. However, excessive or uneven shrinkage leads to product deformation. High shrinkage rates, improper temperature settings, or rapid cooling all contribute to this issue.

Solution:
Select resins with low shrinkage rates whenever possible. Carefully control the injection molding process, ensuring stable temperatures in both the mold and the barrel. Adjusting the packing pressure and cooling time helps manage shrinkage. Mold makers can also add fillers to the resin to reduce shrinkage, but they must account for how fillers affect material flow.

Conclusion

Deformation in injection-molded products is a major issue for injection molding companies. It compromises both the functionality and appearance of the product. Uneven cooling, poor mold design, inconsistent material flow, residual stress, and material shrinkage are the primary causes. Mold makers can solve these problems by focusing on proper design, materials, and process control.

By optimizing the cooling system, ensuring consistent material flow, and controlling the shrinkage rate, injection molding companies can reduce deformation. A good mold maker knows how to address these challenges during the injection mold design phase. Implementing these solutions leads to higher-quality parts and satisfied customers.

The key to preventing deformation is understanding how various factors in the injection molding process interact. By taking a proactive approach, mold makers can ensure that their molds produce precise, high-quality parts every time. In the competitive world of injection molding, maintaining part accuracy and reducing defects is essential for success.
