Mold Maker: Material Selection
Material Selection and Inspection , process of Mold Maker
In injection molding, the material choice for the mold is crucial for its durability, performance, and cost-effectiveness. A mold maker must carefully select materials that can endure high pressures, temperatures, and repeated cycles while maintaining precise tolerances. Here’s an overview of the key considerations in material selection and inspection:
Material Selection for Mold Components
Mold Base Material: The mold base supports all other components. A mold maker needs a material that offers strength, machinability, and stability.
P20 Tool Steel:P20 tool steel is commonly used by mold makers. It balances hardness and machinability, making it suitable for many applications.
H13 Tool Steel:For higher production or more wear resistance, H13 tool steel is preferred. It resists wear and thermal fatigue but is harder to machine.
Core and Cavity Material: The core and cavity, where the plastic part is formed, demand materials with high hardness and wear resistance. Hardened tool steels like H13 or S136 are often selected for their ability to resist abrasion and maintain a smooth surface finish over long production runs. Stainless steels such as 420 or 440C are chosen when corrosion resistance is a priority, especially when molding corrosive materials or in humid environments.

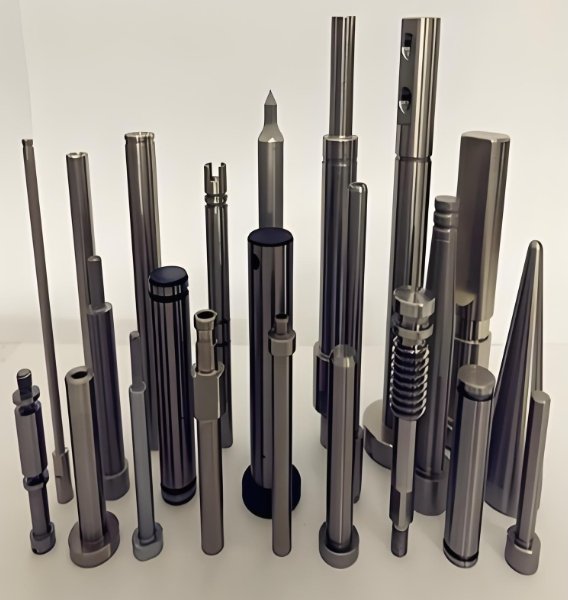

Ejector Pins and Inserts: Ejector pins and inserts, which are critical for part ejection, require materials that can withstand repetitive contact and wear. A2 or D2 tool steels are commonly used for ejector pins due to their toughness and wear resistance. For inserts, especially those exposed to aggressive materials or high temperatures, a material like carbide might be used for its exceptional wear resistance, though it comes with higher costs.

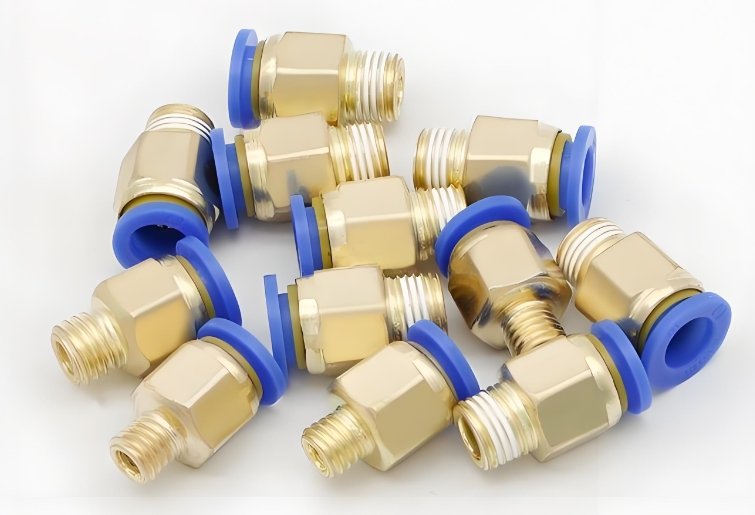

Cooling System Components : The cooling system’s performance significantly affects cycle times and part quality. Materials like beryllium copper are often used in cooling components due to their excellent thermal conductivity, which helps in rapidly removing heat from the mold. However, this material is expensive and requires careful handling due to its toxicity. For cost-sensitive applications, aluminum or stainless steel might be used, offering a balance between thermal performance and cost.
Inspection and Verification from Mold Maker
Once the materials are selected, rigorous inspection is essential to ensure that the mold components meet the required specifications.
Material Certification and Verification Begin by obtaining certification from the material supplier, detailing the material’s chemical composition, mechanical properties, and compliance with industry standards. Verification against the certification ensures that the material supplied matches the specified grade and quality, preventing potential failures during mold operation.

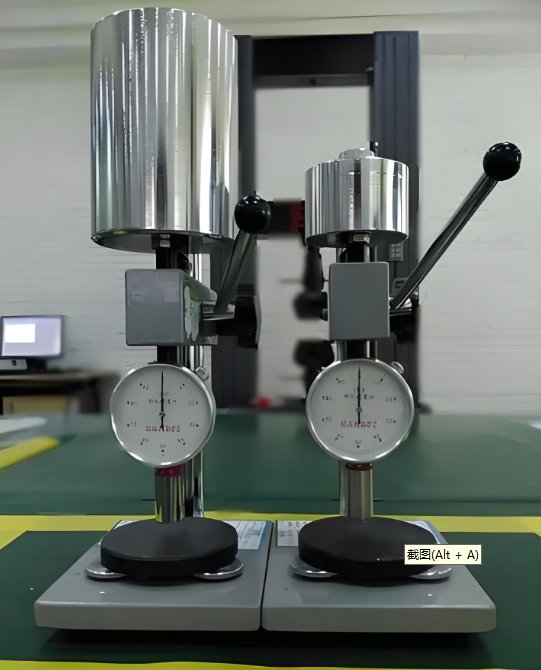

Hardness Testing Hardness testing is crucial, particularly for the core and cavity, to confirm that the material has been properly hardened. Techniques like Rockwell or Vickers hardness testing are used to measure the hardness of the components, ensuring they meet the specified hardness level and will resist wear during production.
Surface Finish Inspection The surface finish of the core and cavity directly affects the quality of the molded parts. Visual inspections, along with surface roughness measurements, ensure that the required finish (e.g., polished, textured) is achieved. Any deviations in surface finish can lead to issues like poor part release or surface defects on the molded parts.
Functional Testing Before the mold is used in full-scale production, it undergoes functional testing, including trial runs with the intended material. This step ensures that all components function correctly, and that the cooling system effectively maintains the desired cycle time. Any issues identified during these tests can be addressed before committing to full-scale production.
Conclusion
Selecting the right materials for mold components and conducting thorough inspections are critical to ensuring the mold’s longevity, performance, and efficiency. By carefully choosing materials that match the specific requirements of the molding process and verifying their quality through rigorous inspections, manufacturers can produce high-quality molds that deliver consistent results over long production runs.
